Precision Interlocking Cell Partitions & Dividers for Zero-Damage Freight

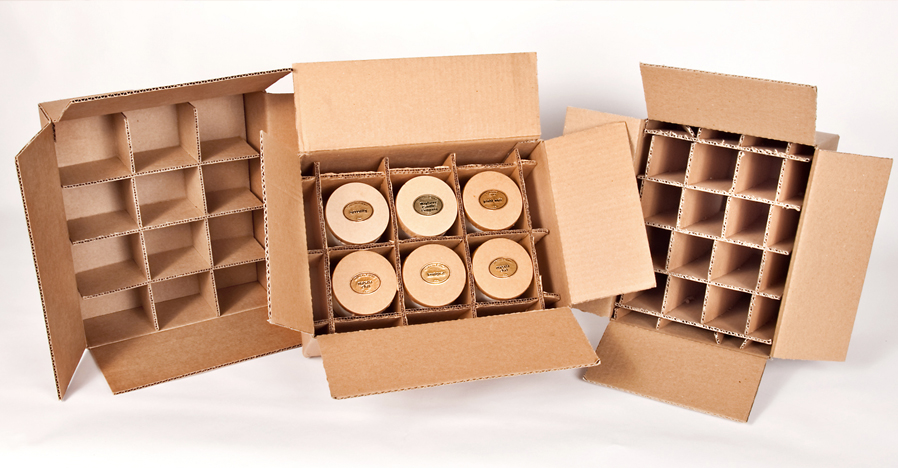

ARUL RK ENTERPRISES designs and fabricates custom partition corrugated boxes, interlocking slotted dividers, and nested cell matrix systems that isolate delicate components during transit. Engineered at our Hosur manufacturing facility, our partitioned box systems eliminate item-to-item contact, reduce vibration abrasion, and significantly increase the overall Box Compression Test (BCT) top-load capacity of shipping cartons.
When high-density, fragile, or precision-machined goods are transported, lateral transit accelerations cause items to collide, resulting in scuff marks, shattered glass, or deformed precision tolerances. Our slotted grid dividers (FEFCO 0933 / 0901 standards) establish dedicated cellular compartments that cradle each product individually. Furthermore, because each vertical partition rib functions as an internal structural column, partitioned cartons achieve up to 35% higher vertical stacking stability than unpartitioned boxes of the same grammage.
Engineered Grid Architectures & Custom Formats
We produce tailor-made partition solutions configured for manual packing benches or automated pick-and-place packaging lines:
- Custom Cell Matrices: 4, 6, 12, 24, 36, or 48 individual cellular compartments tailored to your component envelope

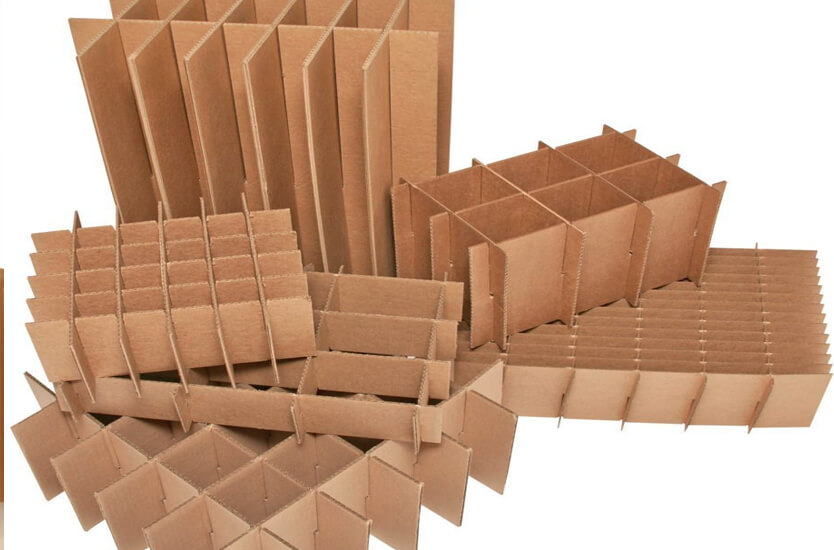

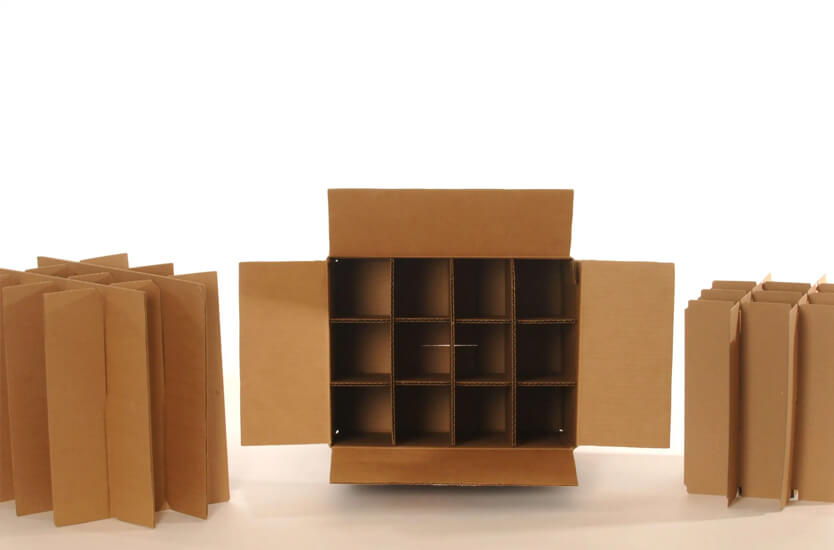

- Precision Notched Interlocking Dividers — Assembled or knocked-down flat (KDF) for compact inbound storage
- B-Flute (3.0mm) & E-Flute (1.5mm) Corrugated Partitions for high impact cushioning and dimensional rigidity

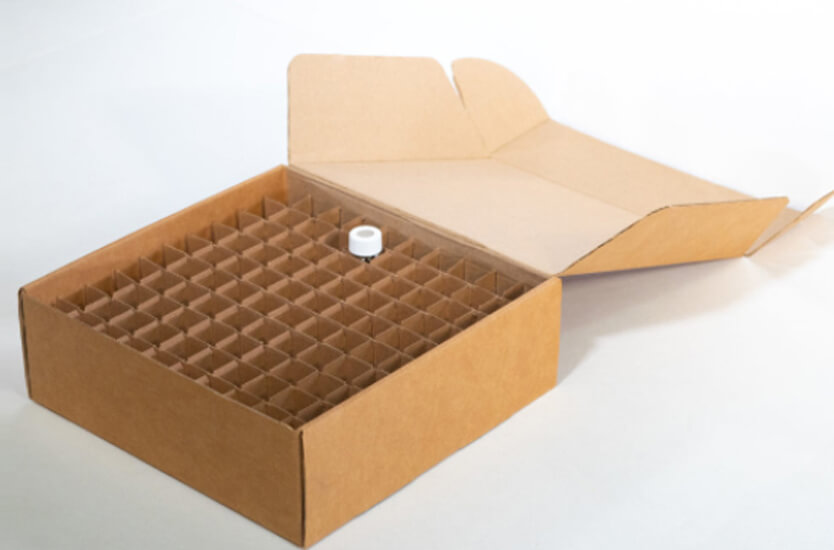

- Solid Fiberboard & Chipboard Dividers (0.8mm to 1.5mm) for compact pharmaceutical vials and cosmetic glass containers
- Anti-Abrasive & Dust-Free Surface Finishes to protect high-gloss paint, polished chrome, and optical surfaces
- Multi-Tier Stacking Partitions with horizontal separator pads for multi-layer carton packaging
Material Comparison: Corrugated vs. Solid Board Partitions
Choosing the optimal partition substrate depends on product weight, surface sensitivity, and carton volume efficiency:
| Feature / Metric | B-Flute Corrugated (3.0mm) | E-Flute Micro-Flute (1.5mm) | Solid Chipboard (0.8–1.2mm) |
|---|---|---|---|
| Impact Cushioning | High (Air cushion flute) | Moderate (Compact wave) | Low (Rigid structural barrier) |
| Space Utilization | Standard volume | Compact (+15% more cells/box) | Maximum (+25% cell density) |
| Dust Generation | Low (Clean slotted edges) | Very Low (Fine die-cut) | Virtually Zero (Smooth solid fiber) |
| Top-Load BCT Contribution | +25% to +35% | +15% to +20% | +10% to +15% |
| Typical Applications | Auto parts, bottles, metal gears | Electronics, cosmetics, glassware | Pharma vials, ampoules, luxury goods |
Sector Solutions Engineered for Industrial Hosur
Operating in Tamil Nadu's prime manufacturing corridor, ARUL RK ENTERPRISES manufactures partitioned boxes calibrated to strict industrial sector standards:
- Automotive Machined Components: Custom cell dividers for CNC-turned shafts, fuel injectors, precision bearings, and sensor housings that prevent metal-to-metal contact during intra-plant transport.

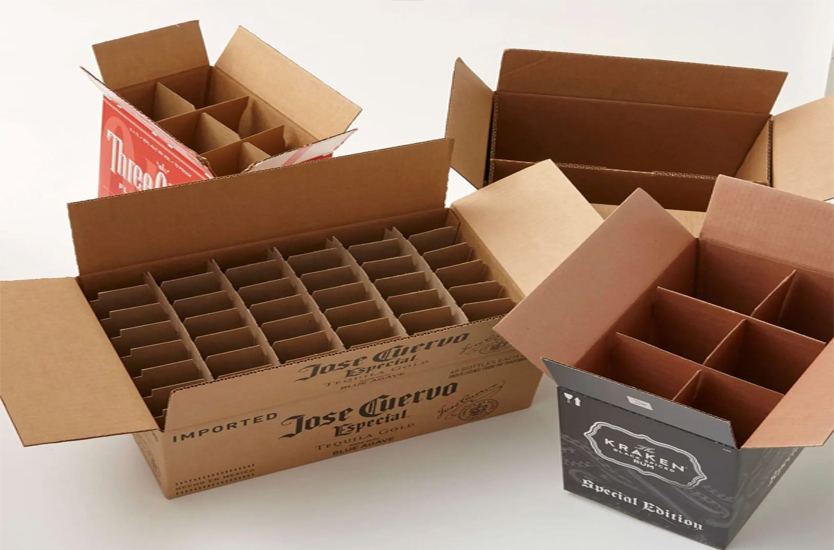

- Beverage & Glass Container Packaging: 6-bottle, 12-bottle, and 24-bottle slotted partitions engineered to absorb dynamic road shocks across state logistics routes.
- Pharmaceutical & Diagnostic Supplies: Anti-dusting solid fiber dividers for serum bottles, reagent vials, and diagnostic syringes complying with GMP packaging cleanroom protocols.
- Lighting, Electrical & Electronics: Interlocking grid nests with top and bottom cushion pads for delicate LED tubes, bulbs, and circuit module assemblies.
Frequently Asked Questions
Technical guidance on partition design, cell sizing, and delivery formats.
Need custom cell dividers or complete partitioned boxes? Get a tailored CAD design and quotation.
